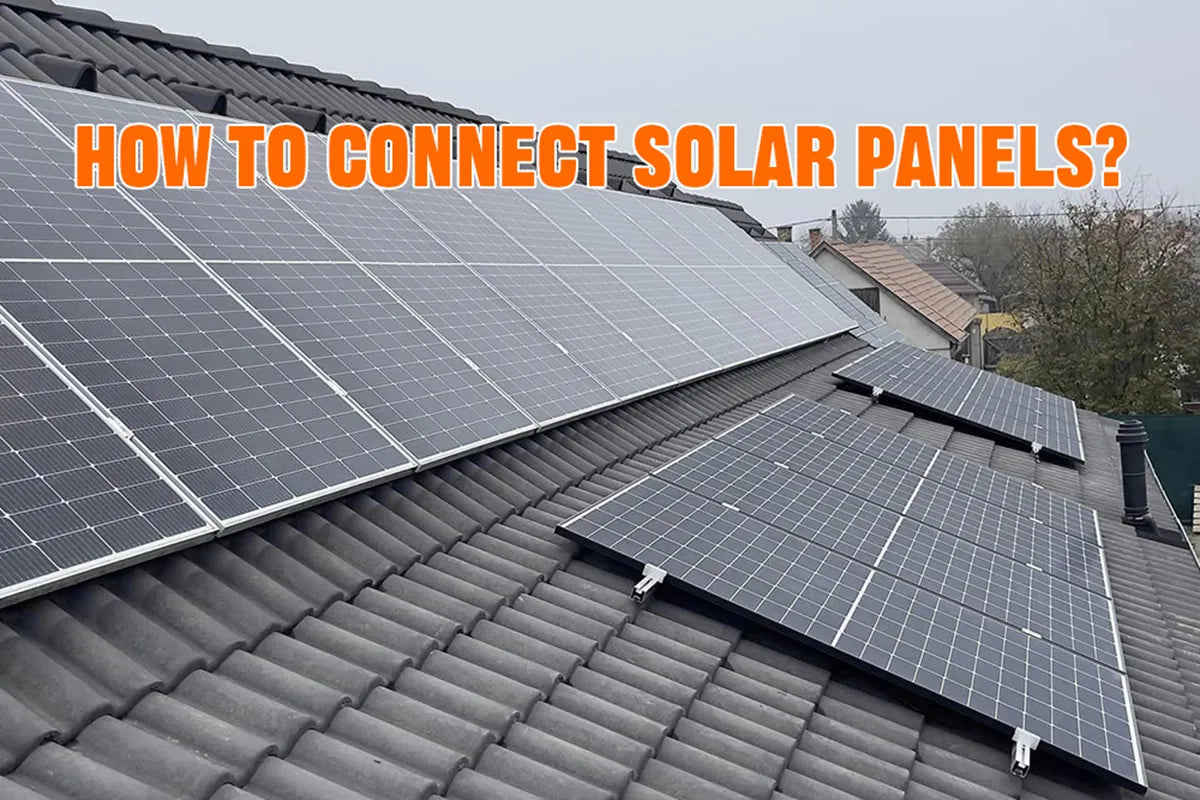

How to Connect Solar Panels?

In Nigeria, relying on the Nigerian national grid means dealing with frequent blackouts and unreliable power. That is why more households and businesses are turning to solar energy. But the real question is: how to connect solar panels correctly?

This guide covers the types of solar panels, best connection methods (series vs. parallel), a step-by-step installation process, and practical tips for Nigerian users.

Types of Solar Panels

The two most common soalr panels types used by Nigerian households and businesses are monocrystalline solar panels and polycrystalline solar panels. Here’s a breakdown of solar panels features and approximate prices in the Nigerian market:

Monocrystalline Solar Panel

• These panels offer higher efficiency (18–22%), longer lifespan, and better performance under low-light conditions.
• Ideal for areas with limited roof space, as they generate more power per square meter.
• The solar panel price in Nigeria for a 100W monocrystalline panel typically ranges from NGN 60,000 to NGN 90,000, depending on the brand and quality.
• Best suited for households or small businesses looking for maximum energy output with a slightly higher budget.

Polycrystalline Solar Panel

• Polycrystalline panels have lower efficiency (15–17%), slightly shorter lifespan, but are significantly more affordable.
• They are a popular choice for larger rooftops or off-grid installations where cost is a bigger factor than space.
• The solar panel price in Nigeria for a 100W polycrystalline panel usually ranges from NGN 35,000 to NGN 60,000, making it suitable for Nigerian users who want a balance between cost and energy generation.

Choosing between these two types depends on your budget, available roof space, and energy needs. For many Nigerian homes, polycrystalline panels are more affordable but have a slightly shorter lifespan, while monocrystalline panels cost more but last longer.

Best Way to Connect Solar Panels

In Nigeria, where rooftop space and energy needs vary, understanding the two best ways to connect solar panels—series and parallel—can help you keep your solar panel system running smoothly even during frequent Nigerian national grid outages.

Connecting Solar Panels in Series

When to use series connection:

• When your soalr charge controller or solar inverter requires higher input voltage (e.g., 24V or 48V systems).
• When you want to reduce power loss over long cable runs.
• When panels receive consistent sunlight without shading issues.

Drawback: If one panel is shaded or fails, the entire solar panel system output drops significantly because the current is blocked at the weakest point.

Connecting Solar Panels in Parallel

Connecting solar panels in parallel means linking all P+ (positive terminals) together and all P- (negative terminals) together. This increases the total current while keeping the voltage the same as a single panel.

How it works in a solar panel system

• If you connect four 23.33V / 5.45A panels in parallel, the total output remains 23.33V.
• The current adds up (e.g., 5.45A + 5.45A + 5.45A + 5.45A = 21.8A), as shown in the diagram below:

When to use parallel connection:

• When your solar charge controller or solar inverter is limited to a lower input voltage (e.g., 12V systems).
• When panels may experience partial shading at different times of the day.
• When you want one shaded panel to affect only its own output, not the whole solar panel system.

Drawback: Higher current requires thicker cables to prevent overheating and power loss. It is also less efficient for long-distance transmission.

Step-by-Step Guide to Connect Solar Panels

The following steps show how to set up your solar panel system in Nigeria, step by step, for reliable power even during grid outages.

 Choosing the Best Panels in Nigeria

Selecting the best solar panels is the first and most important decision. Here is what to consider for the Nigerian market:

Factors to consider:

Installing solar panel mounts and angles for sunlight

In Nigeria, solar panels should generally face true north (in the northern hemisphere) and be tilted according to your latitude to capture the most sunlight throughout the year.

• Use sturdy mounts that can withstand wind and rain, common in Nigerian weather.
  Adjustable mounts allow seasonal tilt changes for optimal performance.
• Ensure panels are installed without shading from trees, buildings, or other obstacles.
• Correct mounting and angle adjustment help your system produce more electricity consistently, even during cloudy days or short rainy seasons.

Recommendation for most Nigerian homes: A fixed roof mount or adjustable ground mount offers the best balance of cost and performance.

<

Connecting to Charge Controllers, Inverters, and Batteries

After your solar panels are installed, follow these steps to connect your solar panel system:

1. Connect panels to the soalr charge controller
   • Identify the positive (+) and negative (−) wires from your solar panels.
   • Plug them into the corresponding terminals on the charge controller.
   • Tighten screws and double-check polarity to avoid damage.
2. Connect the charge controller to the battery bank
   • Use thick, insulated cables.
   • Connect positive to positive (+) and negative to negative (−).
   • If you have multiple batteries, wire them according to series or parallel configuration depending on your system voltage.
3. Connect batteries to the inverter
   • Connect the inverter’s DC input to the battery bank.
   • Make sure the inverter is off while connecting.
   • Once connected, turn on the inverter to supply AC power to your home or business.
4. Safety checks
   • Install fuses or circuit breakers between panels, controller, and batteries.
   • Ensure all connections are tight and insulated.
   • Avoid working in wet conditions and always follow safety guidelines.

Following these steps will help your solar system start safely, produce stable electricity, and remain reliable even during frequent Nigerian national grid outages.

System Testing and Startup

After connecting all components of your solar panel system, it’s time to test and start it safely:

1. Check all connections – Ensure cables from panels to controller, controller to batteries, and batteries to inverter are secure and correctly polarized.
2. Turn on the charge controller – Verify it shows proper voltage and charging status.
3. Turn on the inverter – Confirm it outputs AC power to your home or appliances.
4. Test your loads – Plug in lights, fans, or other devices to make sure the system powers them reliably.
5. Monitor performance – For the first few days, check battery levels, inverter temperature, and overall output to ensure everything works correctly.

Proper testing ensures your system operates safely and can help prevent damage to panels, batteries, or connected appliances.

Tips for Nigerian Solar Panels Users

Handling grid instability and frequent power outages: Size batteries for 2–3 days of autonomy, install an automatic transfer switch (ATS), keep a small generator for rainy season, and prioritize essential loads like lights, fans, and fridges.

Theft, lightning, and rain protection: Mount panels inside your compound (not on an accessible roof edge), use anti-theft bolts and security lights, ground your system properly with a copper rod, install DC surge protection devices (SPD), use waterproof MC4 connectors, and keep all electronics indoors away from leaks.

Government policies and incentives: No national residential subsidy currently, but solar equipment is generally exempt from import duties and VAT (nairametrics.com). Some state governments and the Nigerian Energy Support Programme (NESP) offer pilot support for off-grid solutions.

Frequently Asked Questions About Solar Panels in Nigeria

 Can I connect an inverter directly to solar panels?

No. Inverters need stable voltage, but solar panel output fluctuates. Always use this order: Solar Panels → Charge Controller → Battery → Inverter.

How to connect a solar panel to a 12V battery?

Use a charge controller. Never connect directly. Steps: (1) Connect controller to battery first, (2) Connect solar panel to controller. A 12V panel can output 18V–22V — that will destroy a battery without a controller.

How to connect 4 solar panels?

It depends on your system voltage:

• 12V system: Connect all 4 in parallel (voltage stays 12V, current adds up)
• 24V system: Use series-parallel (two series pairs, then parallel)
• 48V system: Connect all 4 in series (voltage adds up to 48V)
